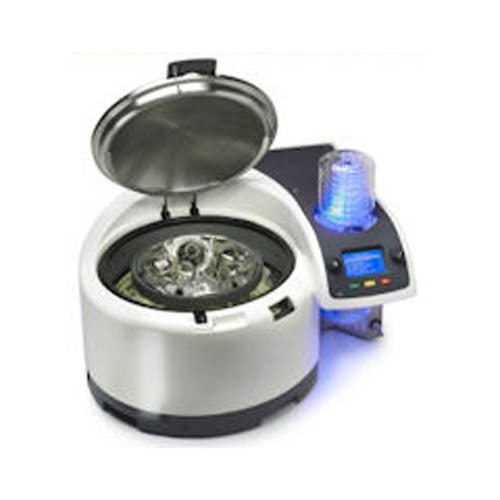

Rocket Evaporator 離心式濃縮系統
Rocket Evaporator 離心式濃縮系統
|
規格說明: |
|
|
Mechanical data Maximum speed Maximum G-force Maximum Sample load Maximum imbalance |
1800rpm 700 6 x 450ml 50g |
|
Vacuum system Pressure display Pressure control System ultimate vacuum Bumping protection |
0-1200mbar Automatic, 3mbar to atmosphere 3mbar Dri-Pure® |
|
Temperature and control Control range Control accuracy Temperature sensing Display range End of method Visualisation |
Ambient +5°C to 60°C ±1°C Via thermistor 0°C to 60°C Time or automatic Via built in strobe (optional) |
|
Solvent compatibility Boiling point range Includes
HCl Di-ethyl ether |
40°C to 160°C at ambient Alcohols, DCM/methylene chloride,DMF, ethyl acetate, water, TFA Not compatible Only with Inert Gas Purge option |
|
Dimensions Width x Depth x Height Headspace required Weight |
720 x 640 x 530mm 55mm (lid open) 75kg |
|
Cold trap cooling requirement Temp range
Heat removal Flow rate Pressure Connections
RS232 connection |
–20°C to +10°Cdependent upon application 700 Watts at 10°C (max) 1 to 2 l/min 1 (min) to 7 bar (max) static 8mm nylon hardwall tube (chiller).¼ inch (6.5mm ) hose barb for cold water connection (standard). Connection hoses not supplied. Provided for Genevac supplied chiller |
